Dream Roadster

The idea of a ‘dream bicycle’ is probably as old as cycling itself, though it can seldom have been portrayed with quite the combination of literary allusion and brand specificity as in this marvellously preposterous poster from 1897 (probably intended as a magazine insert) which features as the frontispiece in that invaluable reference work, ‘Sunbeam Cycles – The Story from the Catalogues 1887-1957‘ (Pinkerton, Roberts, Hadland & Lawrence, available through the V-CC):

(click to enlarge – it’s worth it)

woman dreams of bicycle

The origins of my own dream bicycle are complex, and some lie a long way back in my cycling career, but I will try to disentangle them another time. Here, I’ll just consider how far those dreams have come (so far). And since every picture tells a story, and one is worth a thousand words, let’s do it that way:

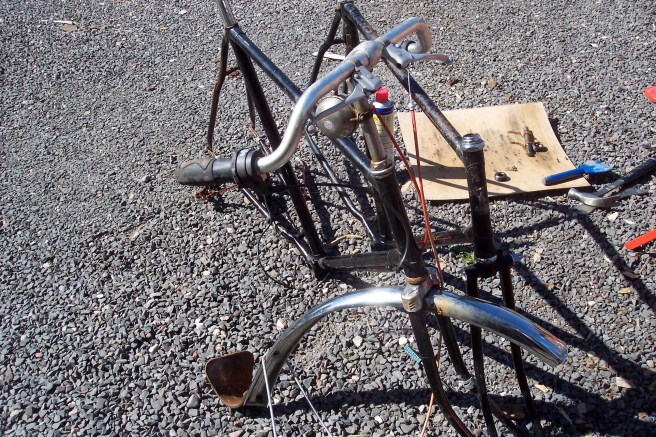

In the beginning, there were two roadster frames:

two stripped roadster frames

The old and the…even older

This isn’t the beginning at all, of course, but mere continuation: the frame with the components is the remains of the Mk II Dream Roadster, which had stripped a thread where the lh chainstay and seatstay bolt together, and then been laid aside when one particular component (of which more later) proved recalcitrant (it has been removed in this picture, which is what precipitated the latest rebuild). The other frame is a 24″ Raleigh DL1 type, picked up on eBay, then set aside till this moment…

The Raleigh frame, black with red and gold lining but very scruffy, incorporates a steering lock, which may indicate that it came from a Superbe. I sourced the key from Old Bike Trader :

Raleigh steering lock with key inserted

Raleigh steering lock with key inserted

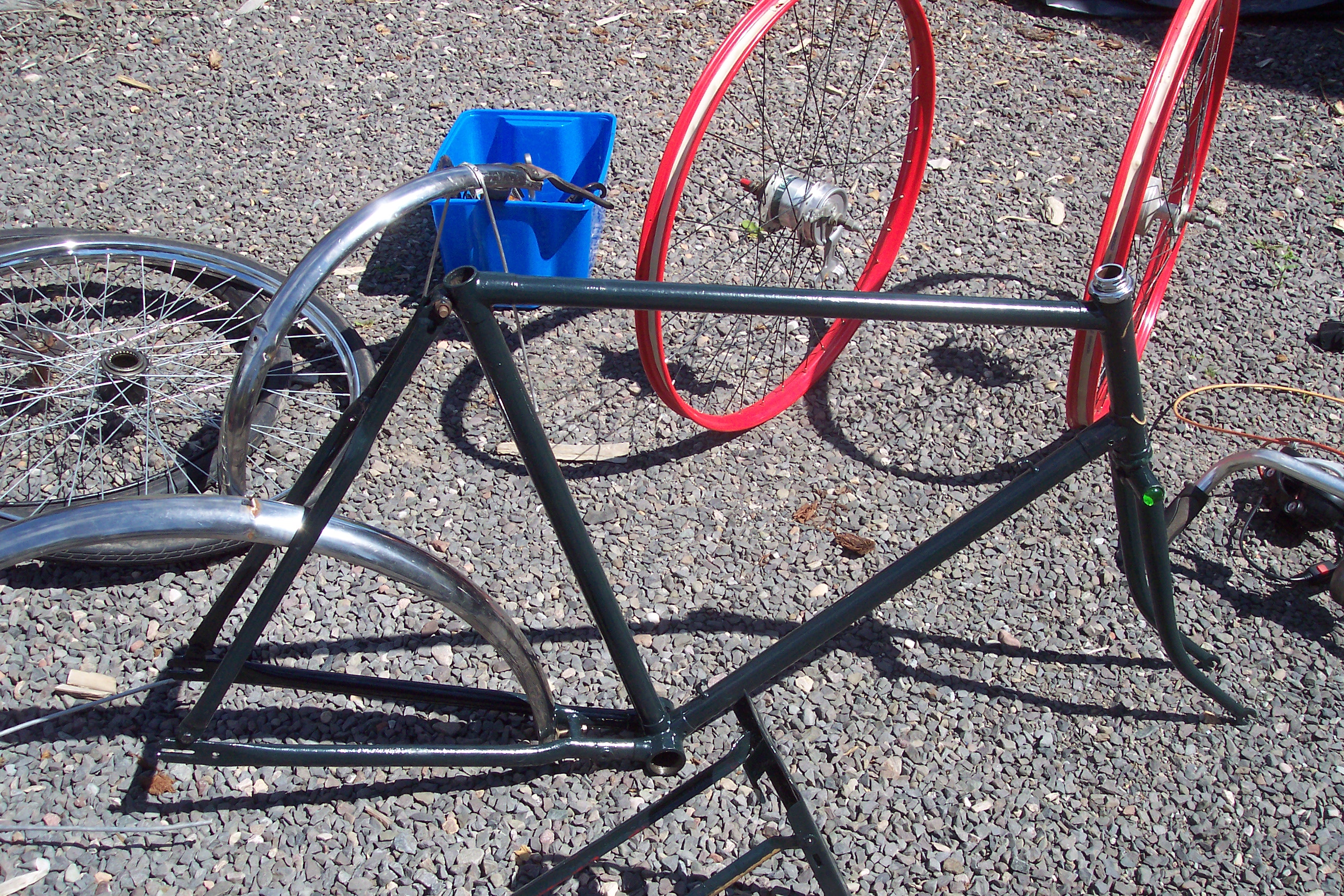

I repainted the Raleigh frame – dark green Hammerite, I’m afraid (I can be uncouth at times). To make matters worse, out of sheer whim, I inserted a green glass pebble into the thimble on the fork crown.

108_2431

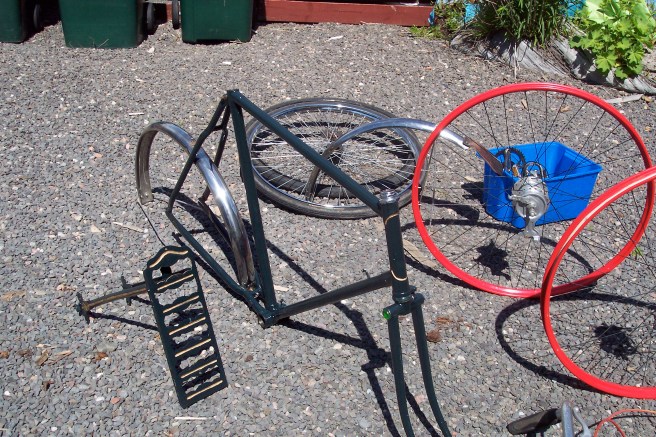

Then a little lining-out with gold Humbrol paint – it’s really best viewed from a distance…

108_2430

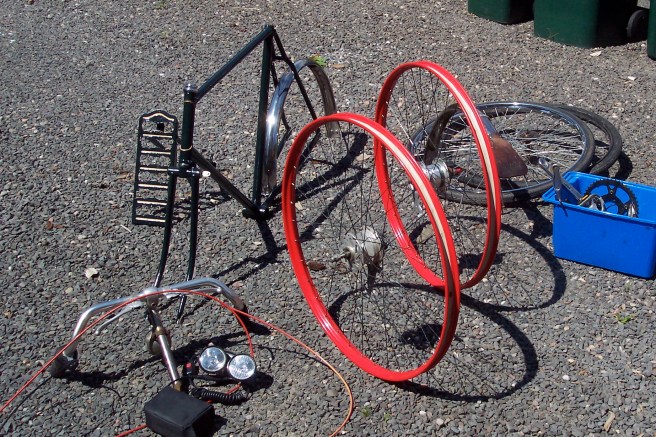

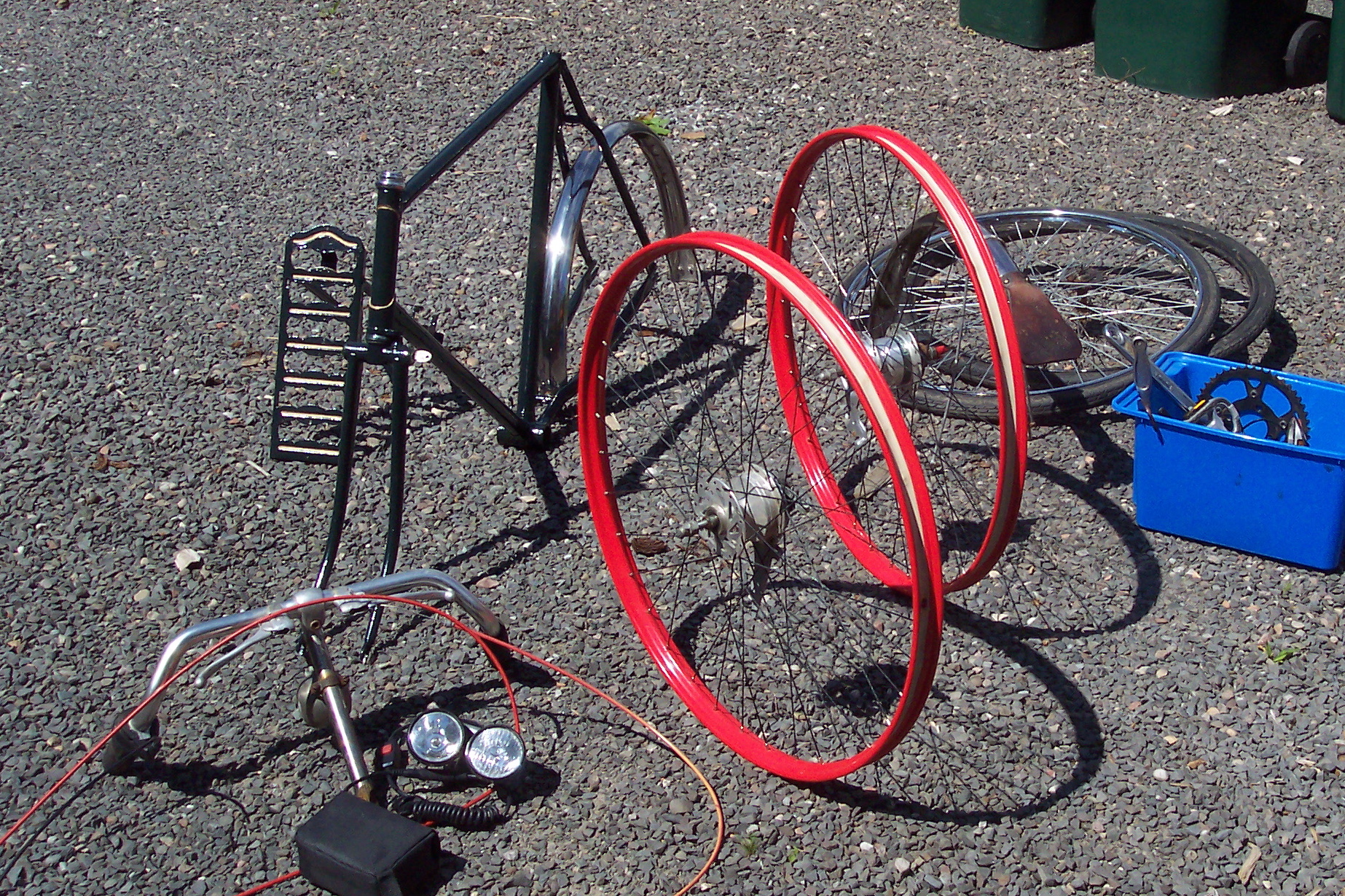

The recalcitrant component, by the way, is lurking in the blue box. Other things of interest are the inverted Nitto promenade handlebars (with SRAM grips and twist shift) a big double-sided Lucas bell (attached to the rear of the stem) Gilles Berthoud stainless steel mudguards (with GB front mudflap in stout leather) and Smart BL-201 headlights powered by a lead-acid battery, ‘Princip’ rack (surely not named after Gavrilo?) and red powder-coated wheels with black spokes. All these were fitted to the previous two versions of the Dream Roadster.

108_2428

The wheels (which I built myself) are fitted with SRAM drum brakes, and now have an SRAM Spectro P5 (formerly Sachs Pentasport) 5-speed hub  in the rear – the very first version had an SRAM Spectro S7 seven-speed hub, but of that, more later… they are fitted with Schwalbe Delta Cruiser tyres. The previous versions had cream-coloured Delta Cruisers, which looked rather well with the red rims, but they are presently on my 1934 Royal Sunbeam. The black looks pretty good too, I think…

108_2432

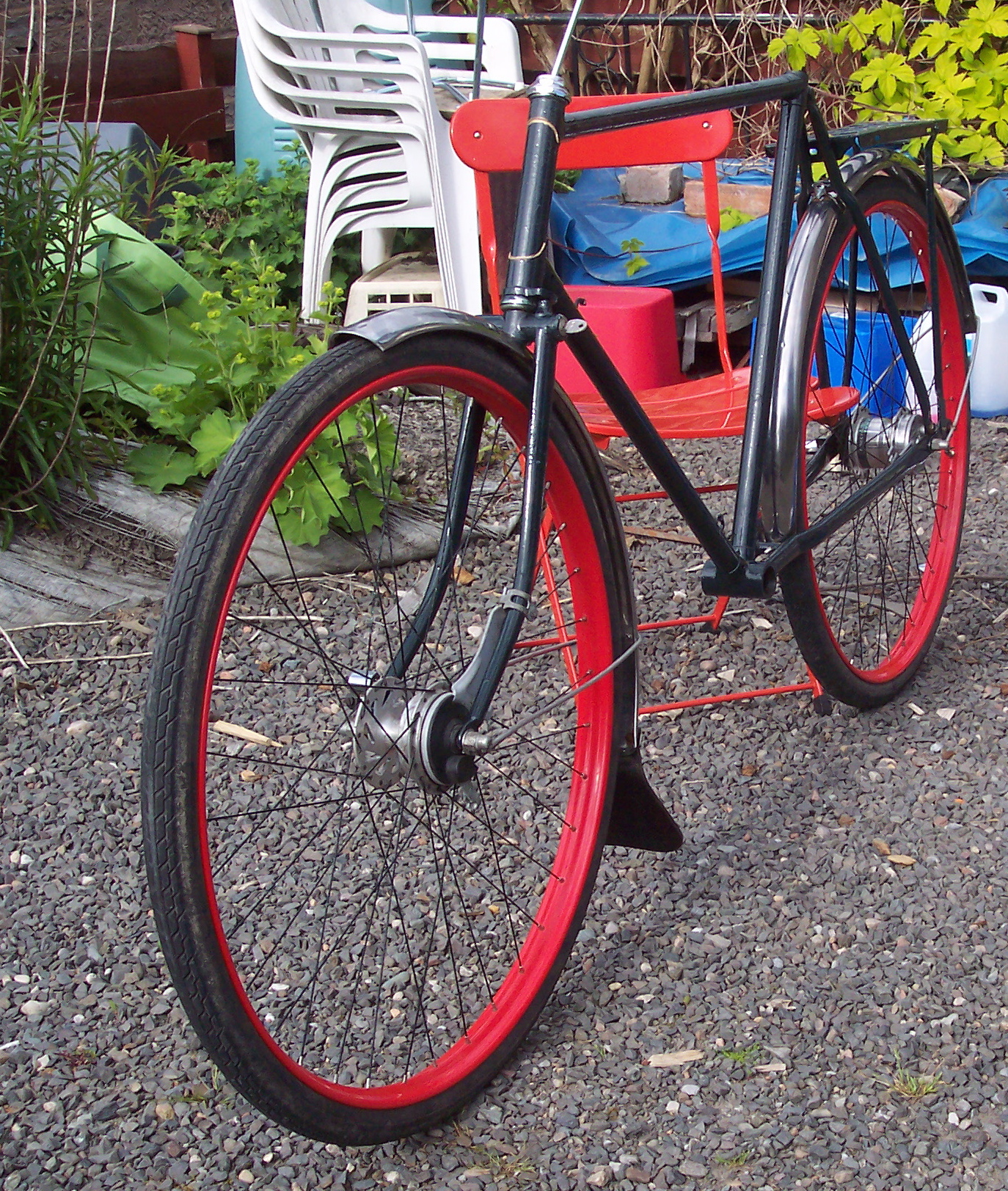

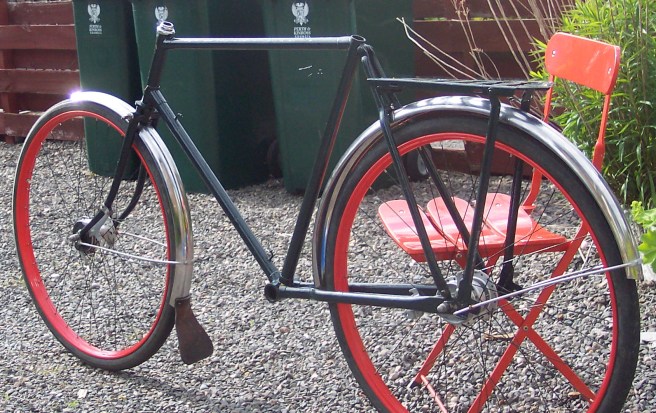

After an afternoon’s toil in glorious sunshine, the dream machine is beginning to take shape…

108_2435

108_2436

108_2437

As my Brooks B90/3 saddle was currently on my 1923 RoyalSunbeam I thought I might make use of some bits and pieces I had lying around, including a B90/3 front spring and a rather nice old Middlemores cover (B185, I think). Why did they stop cutting those key-hole style slots? They look so much better than a row of three small round holes.

108_2438

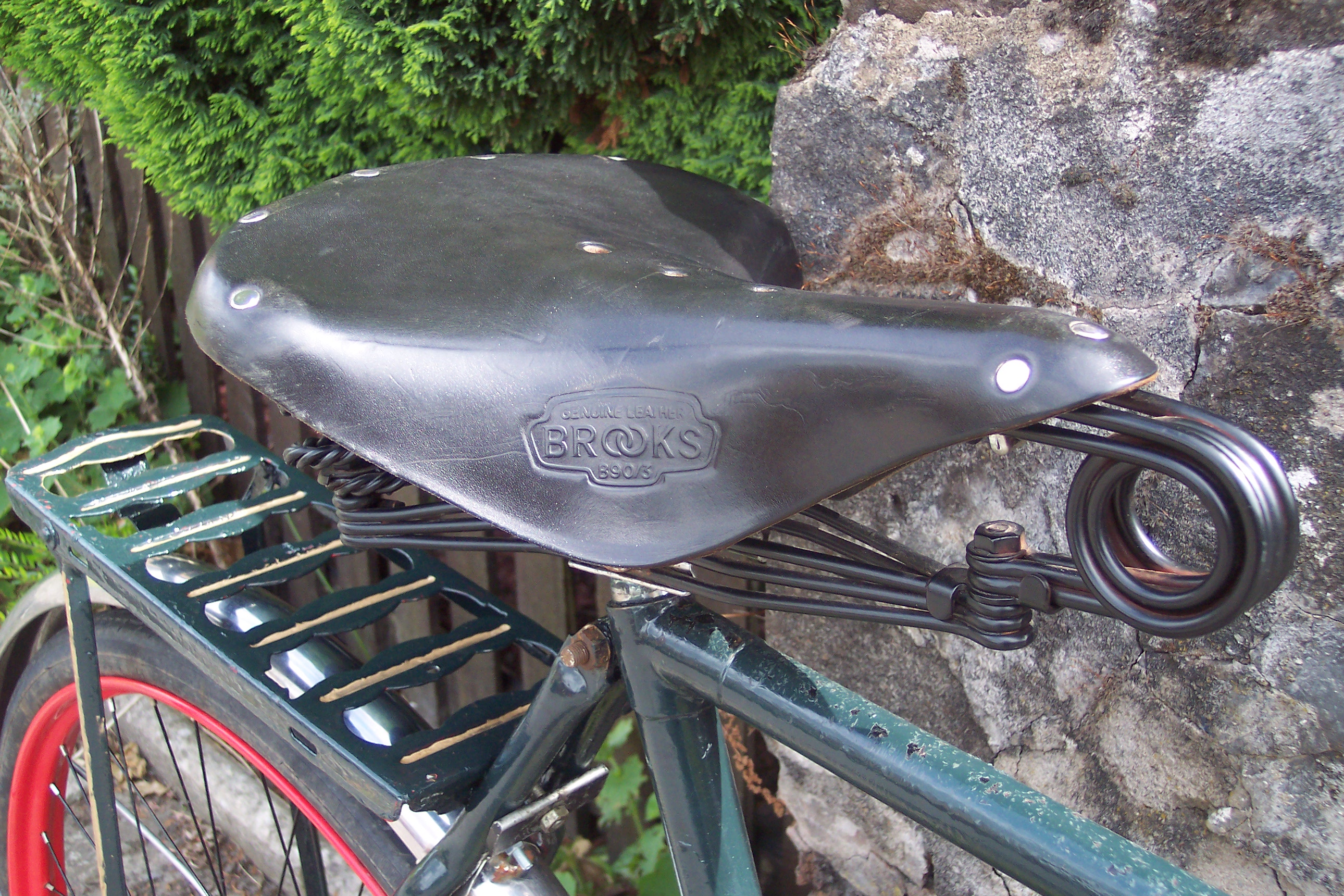

This, however, did not succeed – a cautionary tale. So when the Mk III was finished, I transferred the B90/3 to it (and while we are on the subject, why don’t Brooks – now so intent on trading on their heritage – revive their far-classier oval stamp? and why have they dropped the magnificent B90/3 and substituted the much less impressive B190?):

Brooks B90/3 saddle

Brooks B90/3 saddle

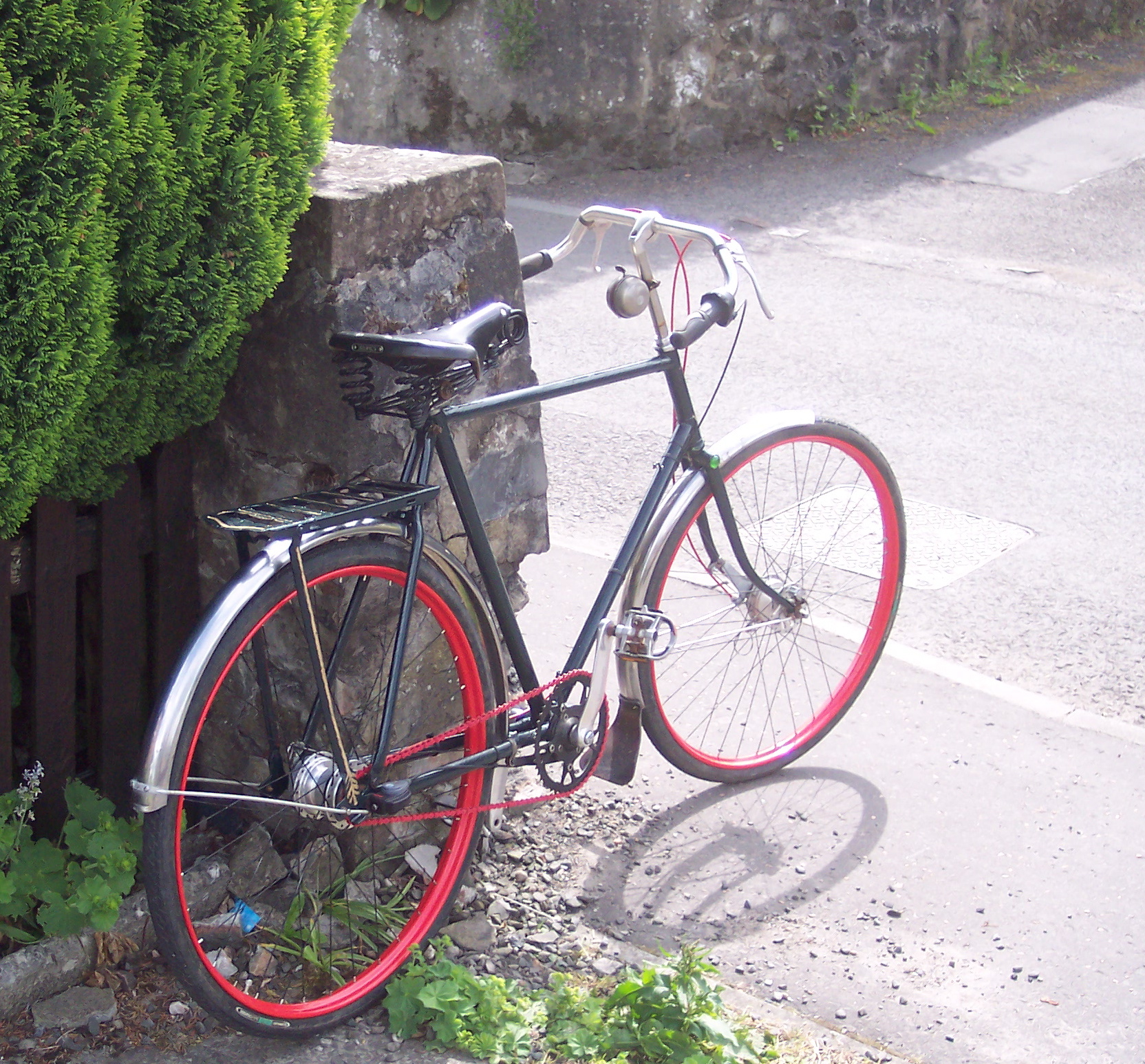

Here is the finished article:

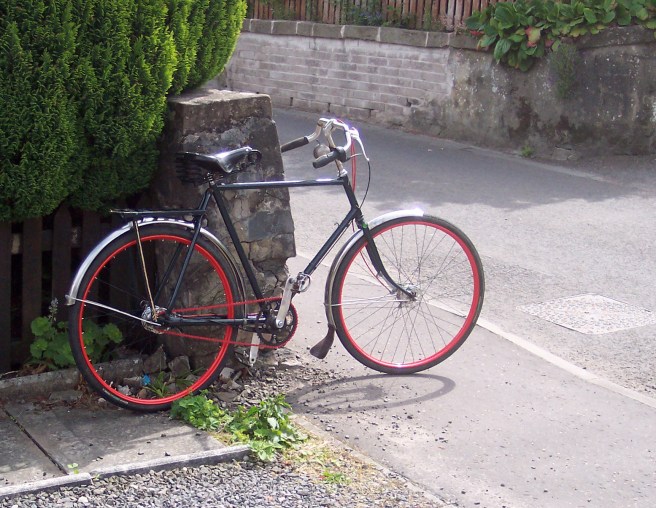

108_2468

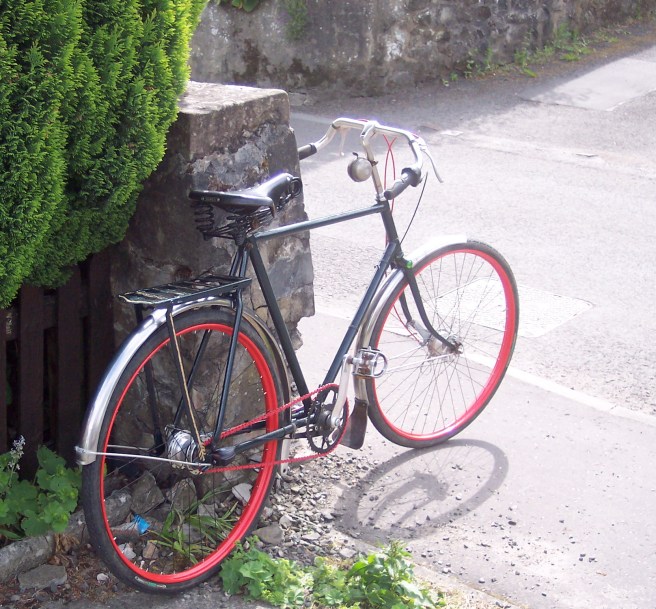

108_2466

108_2465

108_2464

Also transferred from the previous machine is the Lucas mileometer (or odometer, if you prefer) another eBay find. For those of you unfamiliar with such technology, it is a purely mechanical counter, geared in this case to a 28″ wheel (the size is stamped on the body – M28) and usually operated by a striker fitted to the spoke clipping the five-spoke starwheel on the end of the counter (The SRAM hubs are so deep that I replaced the striker with a screw projecting from the flange). This one did have a sojourn on the 1923 Sunbeam when I took it on an epic ride from Inverness to Perth, but unfortunately I put the striker in the wrong place and it turned the wheel the wrong way so the counter ran backwards… I must have lost 120 miles or more that trip.

SRAM Spectro Drum Brake

SRAM Spectro Drum Brake

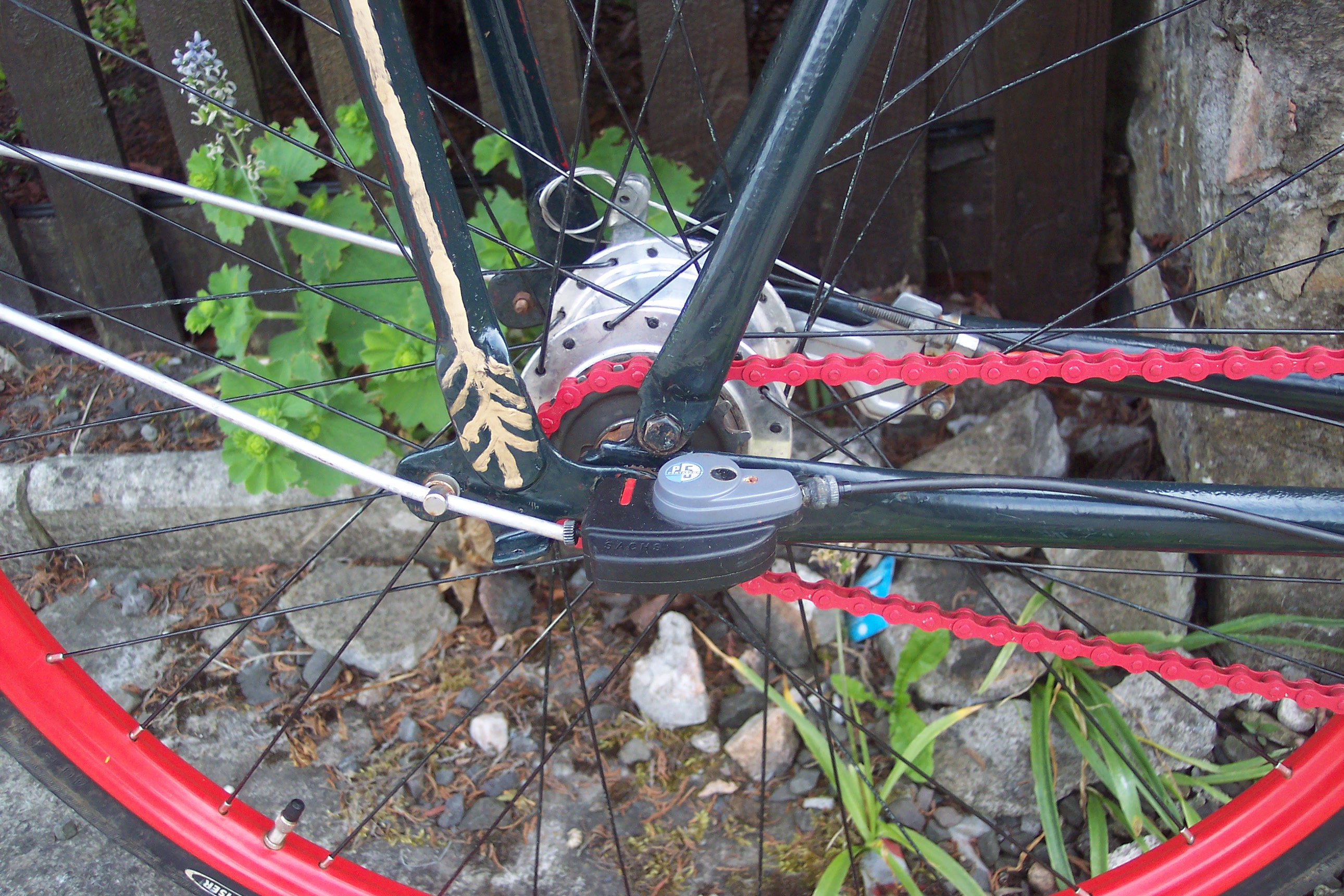

The rear wheel is equipped with an SRAM Spectro P5 hub with drum brake (originally known as the Sachs Pentasport). Instead of the familiar chain, the changer mechanism at the hub is a ‘click-box’ which is very easily removed and replaced, once you get the hang of it. You can fit a guard to protect it, but I’ve got rather too much on that side of the axle already. With the present set-up, 48T front 18T rear (2.67:1) and 28″ wheel, the hub gives the following range of gears:

1st      0.63                     47.09″
2nd    0.78                      58.31″     (about the standard diameter for a racing Ordinary or Penny-farthing wheel)
3rd     1 (direct drive)      74.76″
4th     1.28                      95.69″     (= an 8′ penny-farthing)
5th     1.58″                  118.12″     i.e. 371.234″ or c.10 yards 1 foot for every turn of the pedals (= 21mph at 60rpm) (which is about the hour record for a racing Ordinary)

SRAM Spectro 5 speed hub

SRAM Spectro P5 speed hub

And if we combine that with the recalcitrant component whose removal so long delayed the rebuild, we get interesting results. This is a Schlumpf Mountain Drive, a two-speed epicyclic bottom-bracket gear, the revival of an idea pioneered by Sunbeam 110 years ago, in 1903:

Schlumpf Mountain Drive

Schlumpf Mountain Drive

However, where the Sunbeam offered a 33⅓% increase (or 46.4% in the version combined with Newill 3 speed hub to give 6 gears) the Schlumpf Mountain Drive offers a massive 2/5 (60%) reduction (i.e. each ‘mountain’ gear is 40% of its equivalent: 100″⇒ 40″, 50″⇒ 20″) (its counterpart, the High Speed Drive, gives a x 2.5  increase (5/2 or 250%). When this is engaged – by clicking the button on the axle-end with your heel – you lower the range above to 18.83″ 23.32″ 29.9″ 38.28″ and 47.25″, which will get you up the steepest hill, provided you can turn your legs fast enough – and therein lies the problem: I can’t, or not in my present state of fitness.

(and that is why I changed from the original S7 – the lower gears were so low as to be unusable, though the top gear was fun – with a 3:1 set-up, it was in excess of 12′ – or more than 12 yards on the road for a single turn of the pedals, about 26 mph at 60 rpm).

O well – maybe I need the assistance of a supernatural talisman:

green glass insert in Raleigh fork-crown thimble

The Green eye of the Little Yellow God

If you are not familiar with the reference, it is from a famous ‘parlour poem’ that was still current in my youth, though I doubt it is much heard now – see here.
